You can’t judge a ring’s size by looking at it. A steel ring mandrel does the judging for you, and a good ring sizing mandrel will also help you shape the ring, not just measure it. Our steel ring sizing mandrel carries US sizes 1-16 on one tapered shaft. That makes this ring mandrel US sizes 1-16 tool useful for nearly every ring that comes across your bench. What follows is how jewelers use a steel ring mandrel US sizes 1-16 for sizing and for making rings.

Quick answer: A steel ring mandrel is a tapered steel rod marked with ring sizes. Put a ring on it and the ring stops at its size. The same rod lets you round, shape, or slightly resize a ring. Push the ring on until it stops, read the number at the inside edge, and tap with a rawhide or nylon mallet if the ring needs work. Splenor’s steel ring mandrel covers US sizes 1-16 and costs $23.99.

What a Steel Ring Mandrel Does

It’s a measuring tool and a shaping form in the same piece of steel. The rod is round and tapered, so a ring travels down it until it can’t go any further. The number at the ring’s inside edge gives you the size. Because the rod is solid metal, you can also tap a ring into shape on it, and it won’t flex under you.

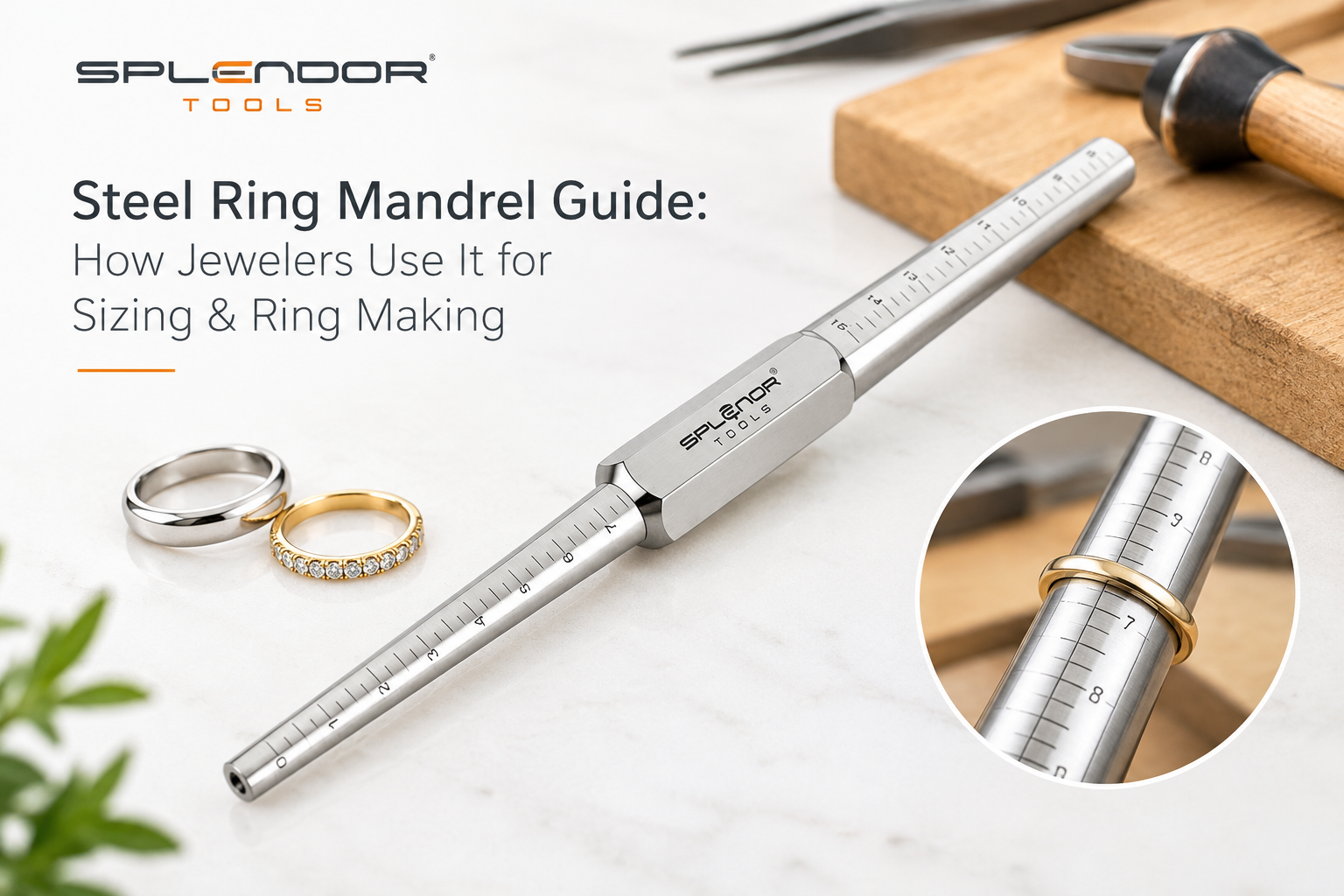

Our ring mandrel US sizes 1-16 is solid stainless steel, about 13 inches long, with the numbers stamped deep into the metal so handling doesn’t wear them away. This matters. A soft mandrel picks up dents, and a dented shaft gives false readings and scratches the inside of every ring that goes over it. Steel holds its taper, which is why you’ll see a steel ring sizing mandrel on most working benches.

How Jewelers Use a Ring Sizing Mandrel

In most shops a ring sizing mandrel ends up doing five things.

The quickest is a size check. After finishing or repairing a ring, you slide it on and read the number. That’s about five seconds of work, and it saves you an awkward phone call when a customer finds the ring doesn’t fit.

Forming comes next. When you build a band from wire or flat strip, you bend it round the mandrel, tap it closed, and solder the seam. The heat tends to pull the ring slightly out of shape, so it goes back on the shaft to be brought round again. Pretty much everyone does this step.

Then there’s the ring that’s gone oval, which happens a lot, since rings get squeezed, knocked, and sometimes sat on. Put it on the shaft and tap lightly while you turn it. It comes back round.

Size changes are the fourth job, though only small ones. Work a ring up the taper in light passes and it will stretch a little. On a plain, solid band, half a size to a full size is realistic. For more than that, you’ll usually need to add metal instead of forcing what’s there.

The last one is simply holding a ring steady so you can check it before you polish it or set stones.

How to Use It, Step by Step

Order matters. Start with hard hits and you’ll flatten a spot or misread the size. Work through it like this:

1.       Slide the ring on and let it settle by itself. If you push it past where it wants to stop, the reading is false.
2.       Read the size at the point where the ring stops. Line up the marking with the ring’s inside edge, not the edge closest to you.
3.       If the ring needs shaping, use a rawhide or nylon mallet. Several light taps work better than one hard one.
4.       Turn the ring as you go, so the force spreads evenly around the band.
5.       Stop every so often to check roundness and size, rather than leaving it all until the end.
6.       When you’re done shaping, and before polishing or setting stones, slide it back on and confirm the final size.

Reading US Ring Sizes

Every full US size is about 0.8 mm larger in inside diameter than the one below it. The figures in this table are approximate, and the markings on your mandrel are what you should trust at the bench.

When a ring stops between two marks, it sits between sizes. Estimate it as it is, and don’t round up. Wide bands also fit tighter than thin ones, so a wide band often has to read about half a size larger before it feels right on the finger.

Mistakes That Cost You a Ring

Hitting the mandrel with a steel hammer is the most common mistake. Use rawhide, nylon, or plastic, or you’ll mark the ring, the shaft, or both. Forcing a ring down the taper is another. It warps the band and gives you a wrong number. Some people also read the wrong edge, and then can’t work out why a ring seems half a size off.

If a ring has stones, take it easy. Heavy tapping can loosen them, so hold the ring in a clamp and keep the strikes light. Check the size once more after polishing and setting too, because both can shift it slightly.

Mandrel or Finger Sizer?

A mandrel and a finger sizer aren’t doing the same job. The mandrel measures a ring. The finger sizer measures a finger. If you make rings to order, take your customer’s size with the finger sizer, make the ring, and then check it on the mandrel.

What Else to Keep on the Bench

A mandrel isn’t much use on its own. You’ll want a rawhide or nylon mallet, a steel bench block for flattening, a ring clamp for stone setting, and a polishing cloth for finishing. Take a customer’s size 8 band that needs to go up to a 9. The mallet does the stretching, the mandrel checks the result, and the clamp and cloth finish it off. Our ring tools collection has more if you’d like to look around.

Which Metals Work

The mandrel works with sterling silver, fine silver, gold, copper, brass, bronze, and aluminum. If you’re new to ring making, start with copper or brass wire. It forms easily, and ruining a practice ring costs very little next to ruining a gold one.

Why We Built This One the Way We Did

We make tools for people who use them every day, so what we cared about was simple. The whole US 1-16 range sits on one shaft, which means you’re not swapping partial mandrels in the middle of a job. The stainless steel resists denting and warping. The polished finish lets you form metal without marking it. And each unit is quality checked before we pack it.

The price is $23.99. US orders ship free within 1-3 business days, and returns are free for 7 days. More than 20,000 jewelers across the United States trust us, and the mandrel has a 5.0 rating from 17 reviews. It’s meant for professionals, metalsmiths, and students, and just as much for anyone making a first handmade band.

Frequently Asked Questions

What is a steel ring mandrel used for?

To check ring size, and to form, round, reshape, and straighten rings. Jewelers use it on new work and on repairs.

What sizes does this ring mandrel cover?

Every full US size from 1 to 16 on a single tapered shaft, from very small rings to large statement pieces.

Is a steel ring sizing mandrel good for beginners?

Yes. The taper and stamped numbers are easy to read, and you can practice on copper or brass wire before you move to silver or gold.

Can I stretch a ring on a mandrel?

A little. Light taps with a rawhide or nylon mallet can add a small amount of size. Bigger changes usually mean adding metal.

What should I tap a ring with?

A rawhide, nylon, or plastic mallet. A steel hammer can mark the ring and the mandrel both.

How is a mandrel different from a ring sizer set?

A sizer set measures a finger with sample rings. A mandrel measures and shapes rings that are finished or still being made.

Conclusion

Maybe you’re setting up a new bench. Maybe the numbers on your old mandrel have worn away. Either way, the Splenor Steel Ring Mandrel, US Sizes 1-16 is $23.99, with free US shipping and 7-day returns.
